BVEX

Balloon-borne VLBI Experiment

Demonstrating stratospheric VLBI correlation at 22 GHz

Pioneering the first-ever VLBI correlation between a balloon-borne telescope in the stratosphere and ground-based radio observatories.

Mission Overview

BVEX represents a groundbreaking advancement in radio astronomy, operating in the stratosphere above 99% of Earth's atmosphere to achieve unprecedented angular resolution through balloon-ground VLBI correlation.

33-37 km
Target Altitude
22 GHz
K-band Frequency
First
Balloon-Ground VLBI

Mission Status

BVEX was successfully launched on August 29th, 2025, from Timmins, Ontario in association with CNES and CSA STRATOS program, but unfortunately did not reach the stratosphere due to a balloon leak. While the science objectives were not fulfilled during this flight, we are preparing to re-launch a much improved BVEX system in the near future.

Principal Mission Goals

  • Demonstrate sub-millimeter positional stability
  • Achieve meter-level 3D position accuracy for VLBI correlation
  • Characterize stratospheric phase stability at 22 GHz
  • Generate interference fringes with ground-based telescopes

System Architecture

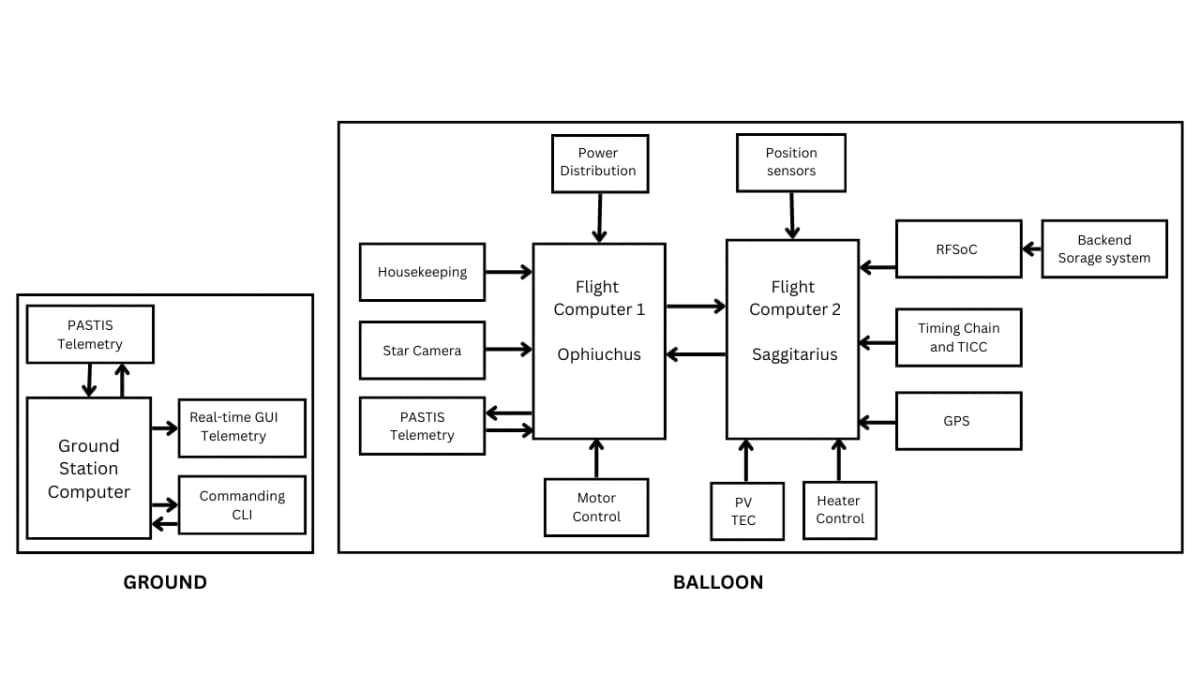

Interactive diagram showing the distributed computing architecture with real-time control systems operating across ground stations and balloon-borne flight computers.

Ground

PASTIS Telemetry
S-Band communication
Ground Station Computer
Control & monitoring
Real-time GUI Telemetry
Live data visualization
Commanding CLI
Command interface

Ophiuchus

Housekeeping
System monitoring
Star Camera
Attitude determination
PASTIS Telemetry
S-Band interface
Motor Control
Telescope pointing

Click on any subsystem block to navigate to its detailed section below

System Components

Detailed overview of the key systems that enable BVEX's groundbreaking VLBI capabilities.

BCP Sagittarius flight computer control system architecture

BCP - Sagittarius

Primary Development

Complete C-based flight control software managing all subsystems on the Sagittarius flight computer, including the RFSoC spectrometer, VLBI backend, timing system, GPS, PR59, position tracking, and heater control. I developed the UDP client-server architecture enabling communication with the Ophiuchus flight computer and ground station command interface.

  • Dual flight computer UDP communication protocol
  • Ground station command interface with real-time telemetry
  • Multi-layer safety systems with watchdog protection

RFSoC Backend System

Primary Development

The RFSoC 4x2 FPGA system implements multiple signal processing pipelines for spectroscopy and VLBI operations. I developed the complete FPGA control system, spectral analysis algorithms, and high-speed data acquisition.

  • AMD-Xilinx XCZU48DR RFSoC Gen3 control
  • 5 GSPS sampling with 14-bit to 2-bit requantization
  • Coarse spectrometer (960 kHz bin resolution)
  • Fine 120 kHz spectrometer for water line detection
  • VLBI 100 GbE link for high-speed data packet capture

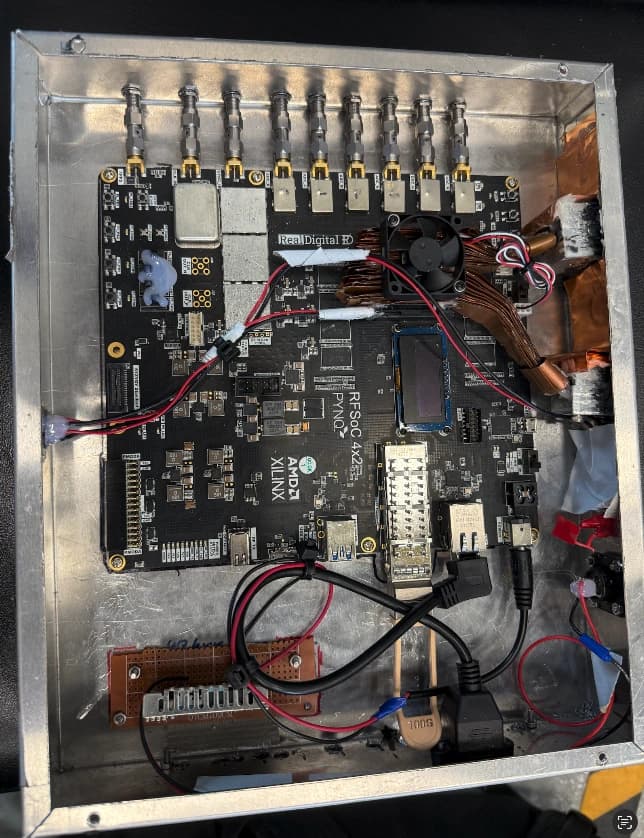

RFSoC FPGA backend system for VLBI signal processing
RFSoC FPGA Backend System
High-speed VLBI data storage system handling 100 Gbps streams
VLBI Data Storage System

VLBI Data Storage

Primary Development

High-speed data recording system handling continuous 100 Gbps data streams from the RFSoC. I developed the complete storage optimization algorithms, real-time recording system, and data integrity verification.

  • 12 GB/s sustained write performance
  • 16 TB storage capacity (6 hours at full rate)
  • Automatic file rotation and redundant verification

Timing System

Primary Development

Precision timing chain essential for VLBI correlation, maintaining phase coherence across the observation. I integrated the OCXO reference, GPS timing, and TICC phase measurements for picosecond-level accuracy.

  • 60 picosecond timing resolution
  • 7×10⁻¹¹ Allan deviation at 1s
  • GPS-disciplined OCXO with TICC monitoring

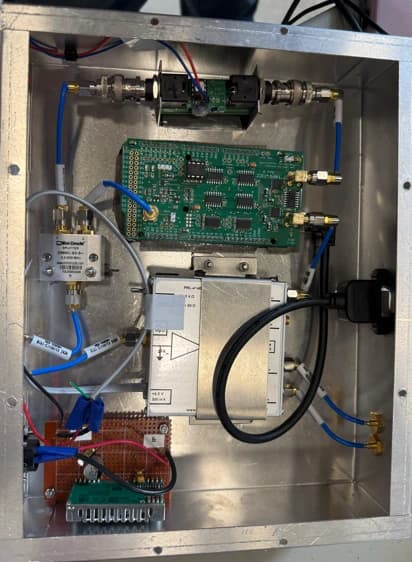

Precision timing system with OCXO and TICC for VLBI synchronization
Housekeeping system monitoring 84+ analog channels for system health

Housekeeping System

Collaborative

Comprehensive health monitoring infrastructure collecting data from 84+ analog channels distributed across the payload. Developed collaboratively with Rafael Costa and Terry Yang, featuring LabJack integration and real-time telemetry.

  • 20+ temperature sensors with ±0.01°C precision
  • Real-time power monitoring (0.1A resolution)
  • Environmental sensors and safety limits

Power Breakout Board (PBoB)

Collaborative

Critical power distribution system enabling remote operation of all BVEX subsystems. Developed collaboratively with Terry Yang, providing intelligent power management and monitoring with LabJack-based control and current sensing capabilities.

  • 10 individually switched power channels (28V input)
  • Remote power cycling capability via ground station
  • Real-time current monitoring with shunt sense resistors
  • Overcurrent protection and brownout detection

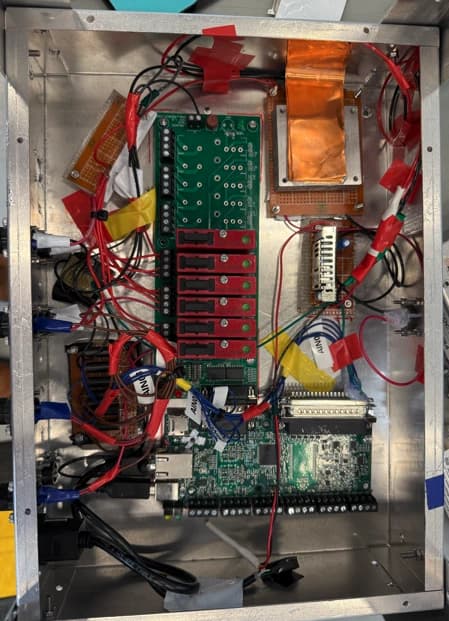

Power Breakout Board system with LabJack control and current sensing

Position Tracking System

Collaborative

Distributed network of high-precision MEMS sensors characterizing mechanical vibrations and pointing stability. Developed in collaboration with Rafael Costa and Aarchi Shah for sub-millimeter position tracking.

  • 3x ADXL355 accelerometers (±8g, 1000 Hz)
  • 1x SPI single-axis gyroscope (1000 Hz)
  • 1x 3-axis I2C gyroscope (1000 Hz)
  • 20 μm RMS position resolution

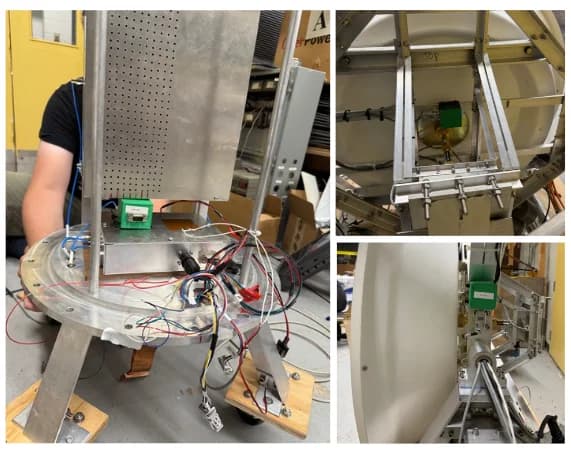

Three SPI ADXL accelerometers for high-precision position tracking
BVEX heater control system with distributed Kapton heating circuits

Heater Control System

Direct Contribution

Distributed heating system maintaining operational temperatures for critical components during passage through the -60°C tropopause. Developed control algorithms and integration with Rafael Costa.

  • 5x Kapton heater circuits (20W each)
  • PID temperature control with safety limits
  • Solid-state relays with thermal protection

PR59 TEC Control System

Primary Development

Precision thermoelectric cooler (TEC) control system for pressure vessel thermal management. I developed the complete control electronics, feedback algorithms, and integration with the PBoB power system.

  • Thermoelectric cooling control for pressure vessel
  • Temperature feedback with ±0.1°C precision
  • Integration with housekeeping telemetry
PR59 TEC controller system for precision thermal management

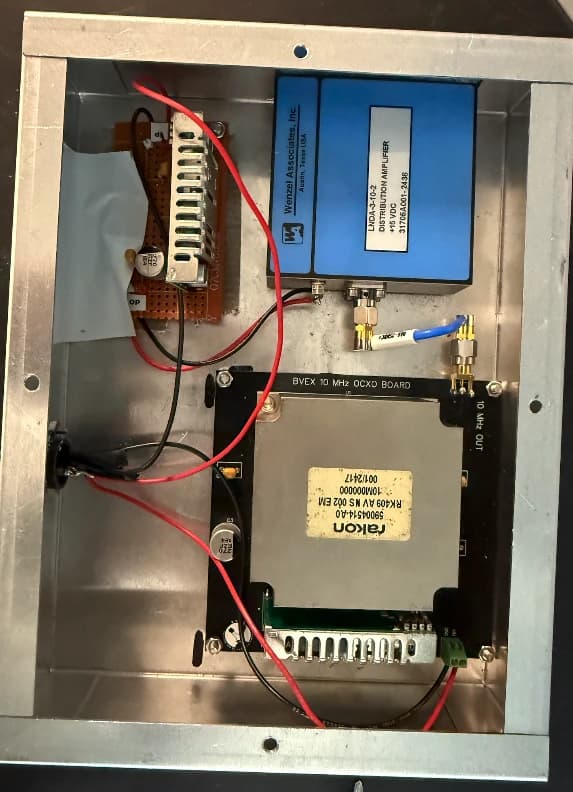

OCXO timing reference system with oven-controlled crystal oscillator

OCXO Timing Reference

Primary Development

Oven-controlled crystal oscillator providing the ultra-stable 10 MHz reference for VLBI operations. I designed the thermal control system, distribution amplifiers, and integration with the timing chain.

  • 10 MHz ultra-stable reference (7×10⁻¹¹ Allan deviation)
  • Oven temperature control (±0.01°C stability)
  • Distribution to RFSoC and timing systems
